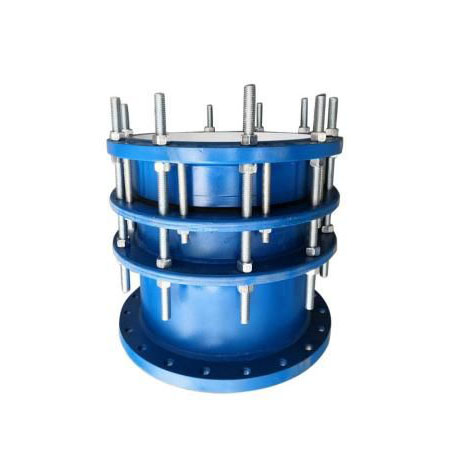

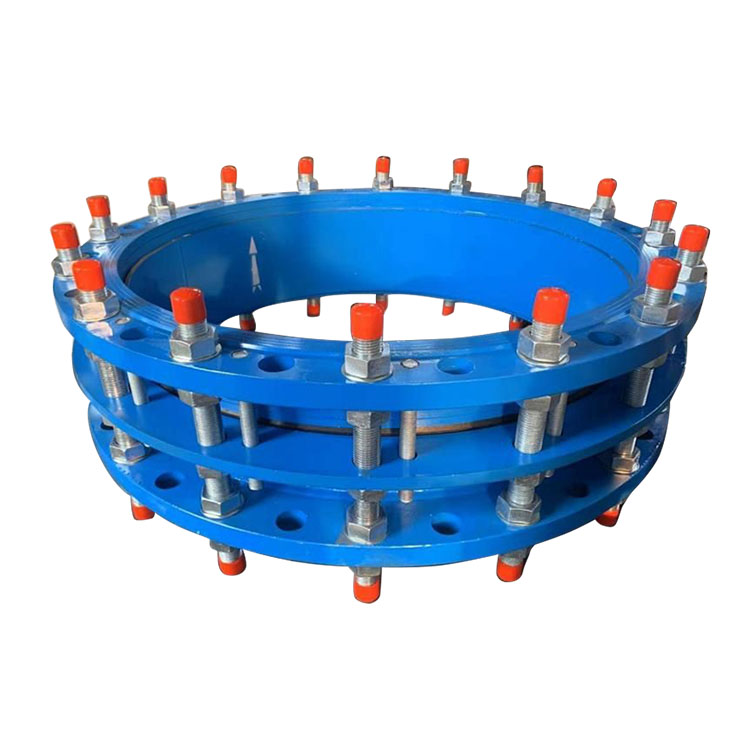

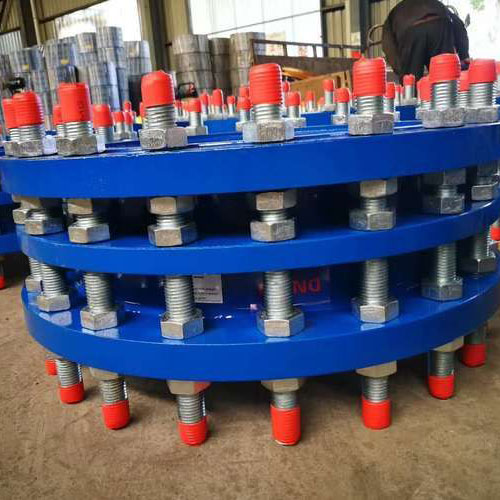

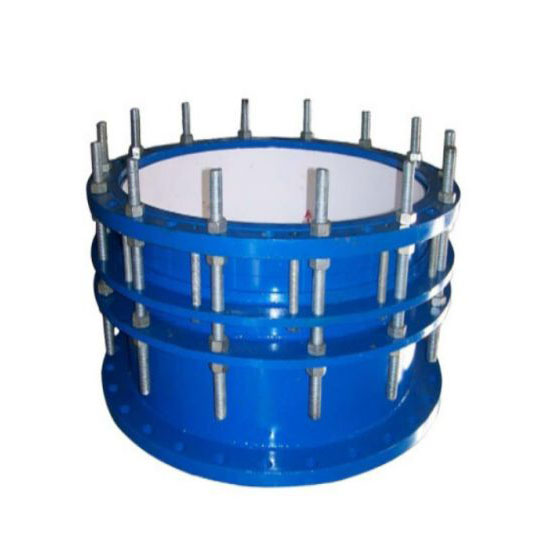

Double Flange Power Delivery Joint Dismantling Joint
FYL specialized in manufacture Fully enclosed Double Flange Power Delivery Joint Dismantling Joint in China. Our company available to provide OEM product according to clients require. We offer competitive price and look forward to become your long-term supplier in China.
Send Inquiry
Product Description
The Double Flange Power Delivery Joint Dismantling Joint is a high-quality electrical component designed for efficient and reliable power transmission. It features a sturdy and durable construction with two flanges for easy installation and connection to the power supply system.
Made from premium materials, this power delivery joint can withstand high pressure and extreme temperatures, ensuring a long-lasting performance. The joint is also designed to minimize power loss and prevent electrical arcing, resulting in a more efficient and safer power transmission.
The double flange design of the joint allows for flexible installation in various configurations, making it suitable for a wide range of power delivery applications. Its compact size and lightweight construction make it easy to handle and transport.
Whether you need to connect power cables in a utility substation, a wind farm, or an industrial facility, the Double Flange Power Delivery Joint is the ideal choice for reliable and efficient power transmission.
Installation Date Table
|
Nominal Diameter |
Pipe Diameter |
SIZE |
Flange Joint Size |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
L |
△L |
0.6MPa |
1.0MPa |
||||||||
|
DN |
DN |
D |
D1 |
n-Th |
b |
D |
D1 |
n-Th |
b |
||
|
65 |
76 |
400 |
40 |
160 |
130 |
4-M12 |
16 |
185 |
145 |
4-M16 |
20 |
|
80 |
89 |
190 |
150 |
4-M16 |
18 |
200 |
160 |
8-M16 |
22 |
||
|
100 |
114 |
210 |
170 |
220 |
180 |
24 |
|||||
|
125 |
140 |
240 |
200 |
8-M16 |
20 |
250 |
210 |
26 |
|||
|
150 |
168 |
265 |
225 |
285 |
240 |
8-M20 |
|||||
|
200 |
219 |
320 |
280 |
22 |
340 |
295 |
28 |
||||
|
250 |
273 |
375 |
335 |
12-M16 |
24 |
395 |
350 |
12-M20 |
|||
|
300 |
325 |
420 |
50 |
440 |
395 |
12-M20 |
24 |
445 |
400 |
12-M20 |
28 |
|
350 |
377 |
490 |
445 |
26 |
505 |
460 |
16-M20 |
30 |
|||
|
400 |
426 |
540 |
495 |
16-M20 |
28 |
565 |
515 |
16-M24 |
32 |
||
|
450 |
480 |
595 |
550 |
615 |
565 |
20-M24 |
32 |
||||
|
500 |
530 |
645 |
600 |
20-M20 |
30 |
670 |
620 |
34 |
|||
|
600 |
630 |
440 |
755 |
705 |
20-M24 |
780 |
725 |
20-M27 |
36 |
||
|
700 |
720 |
860 |
810 |
24-M24 |
32 |
895 |
840 |
24-M27 |
40 |
||
|
800 |
820 |
600 |
60 |
975 |
920 |
24-M27 |
34 |
1015 |
950 |
24-M30 |
44 |
|
900 |
920 |
1075 |
1020 |
24-M27 |
36 |
1115 |
1050 |
28-M30 |
46 |
||
|
1000 |
1020 |
1175 |
1120 |
28-M27 |
1230 |
1160 |
28-M33 |
50 |
|||
|
1200 |
1220 |
620 |
1405 |
1340 |
32-M30 |
40 |
1455 |
1380 |
32-M36 |
56 |
|
|
1400 |
1420 |
1630 |
1560 |
36-M33 |
44 |
1675 |
1590 |
36-M39 |
62 |
||
|
1600 |
1620 |
630 |
1830 |
1760 |
40-M33 |
48 |
1915 |
1820 |
40-M4 |
68 |
|
|
1800 |
1820 |
2045 |
1970 |
44-M36 |
50 |
2115 |
2020 |
44-M45 |
70 |
||
|
2000 |
2020 |
650 |
2265 |
2180 |
48-M39 |
54 |
2325 |
2230 |
48-M45 |
74 |
|
|
2200 |
2220 |
2475 |
2390 |
52-M39 |
60 |
2550 |
2440 |
52-M52 |
80 |
||
|
2400 |
2420 |
2685 |
2600 |
56-M39 |
62 |
2760 |
2650 |
56-M52 |
82 |
||
|
2600 |
2620 |
750 |
80 |
2905 |
2810 |
60-M45 |
64 |
2960 |
2850 |
60-M52 |
88 |
|
2800 |
2820 |
3115 |
3020 |
64-M45 |
68 |
3480 |
3070 |
64-M52 |
94 |
||
|
3000 |
3020 |
3315 |
3220 |
68-M45 |
70 |
3405 |
3290 |
68-M56 |
100 |
||
