Floating Ball Valve

FYL is a large manufacturer for industry machine in China. Our factory produce different type of ball valves fill in all international standards. Floating ball valve is one of top sell valves. Our company focus on improving quality, reducing production costs, and benefiting customers. We look forward to becoming your partner and serving you sincerely.

Send Inquiry

Product Description

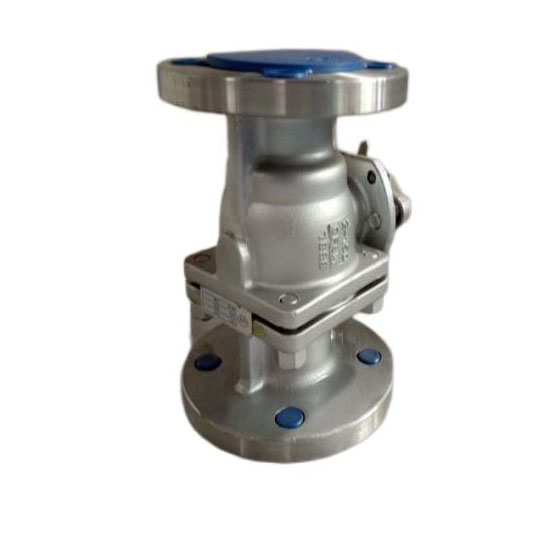

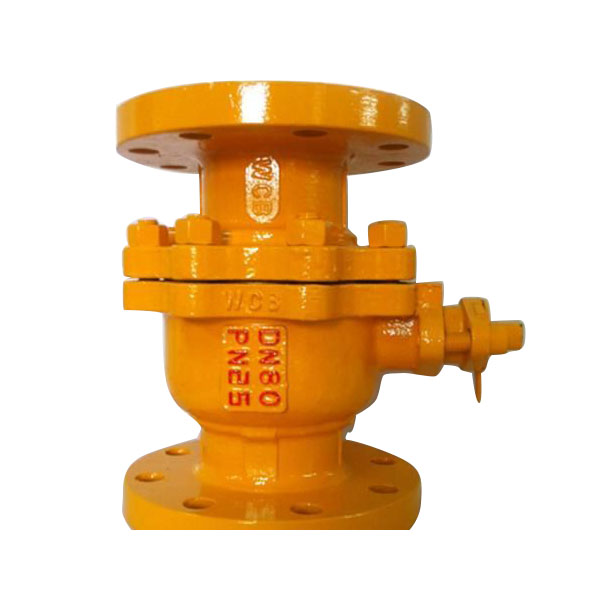

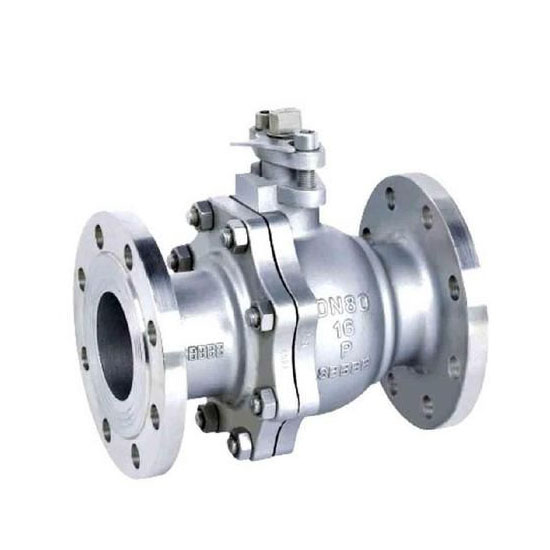

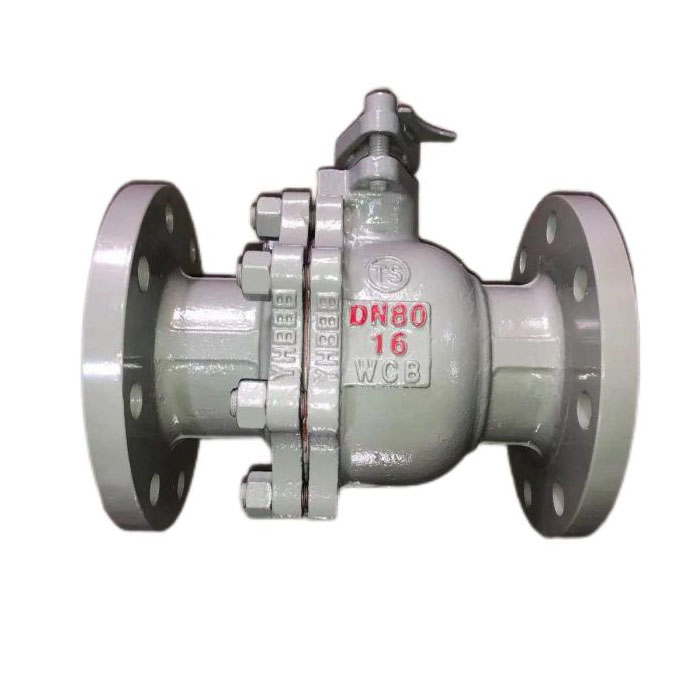

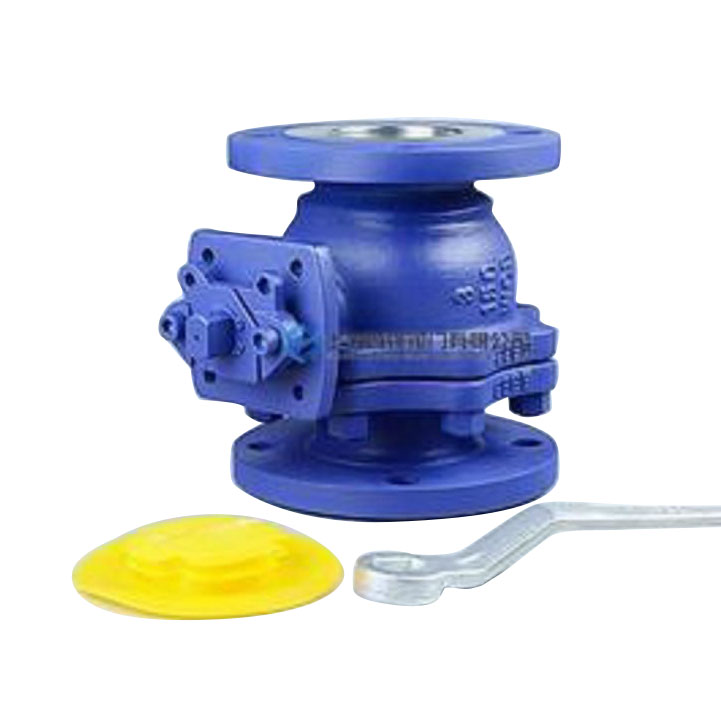

Floating Ball Valve

China FYL Floating ball valves have a ball that flows inside the body of the valve. The ball is connected to the stem, which is operated by a handle. The ball is connected to a lever that opens and closes the valve. Floating ball valves are used in a variety of industries, such as oil and gas, chemical processing, and water treatment.

Floating ball valves are often used in applications with a high degree of accuracy. The ball in a floating ball valve is free to move up and down, which allows it to create a tight seal. This makes floating ball valves ideal for applications where a small amount of leakage is acceptable.Floating ball valves are available in various materials, such as brass, stainless steel, and plastic.

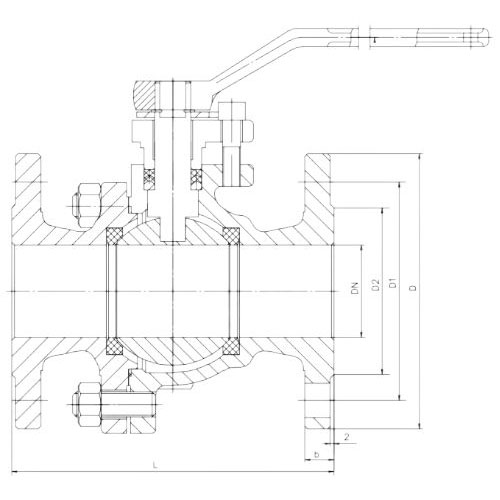

GB Main Size(mm)

SIZE	L			D			Z-Ød
DN	PN16	PN25	PN40	PN16	PN25	PN40	PN16	150LB	300LB
15	130	130	130	95	95	95	4-14	4-14	4-14
20	140	140	140	105	105	105	4-14	4-14	4-14
25	150	150	150	115	115	115	4-14	4-14	4-14
32	165	165	180	135	135	135	4-19	4-18	4-18
40	180	180	200	145	145	145	4-19	4-18	4-18
50	200	200	220	160	160	160	4-19	4-18	4-18
65	220	220	250	180	180	180	4-19	4-18	8-18
80	250	250	280	195	195	195	8-19	8-18	8-18
100	280	280	320	215	230	230	8-19	8-18	8-23
125	320	320	400	245	270	270	8-19	8-25	8-25
150	360	360	400	280	300	300	8-23	8-25	8-25
200	400	400	880	335	360	375	12-23	12-25	12-30
250	533	533	598	405	425	445	12-25	12-30	12-34

AISI(mm)

SIZE	L			D			Z-Ød
DN	150LB	300LB	600LB	150LB	300LB	600LB	150LB	300LB	600LB
1/2"	108	140	165	89	95	95	4-15	4-15	4-16
3/4"	117	152	190	98	115	117	4-15	4-15	4-19
1"	127	165	216	108	125	124	4-15	4-19	4-19
1-¼"	140	178	229	117	135	133	4-15	4-19	4-19
1-1/2"	165	190	241	127	155	156	4-15	4-22	4-22
2"	178	216	292	152	165	165	4-19	8-19	8-19
2-1/2"	190	241		178	190		4-19	8-22
3"	203	283		190	210		4-19	8-22
4"	229	305	432	229	254	273	4-19	8-22	8-25
5"	256	381	491	254	279	330	8-22	8-22	8-29
6"	394	403	559	279	318	356	8-22	12-22	12-29
8"	457	502	660	343	381	419	8-22	12-25	12-32
10"	533	568		406	444		12-25	16-29
12"	610			483			12-25
14"	686			535			12-29
16"	762			597			16-29
18"	914			635			16-32
