Weir Type Diaphragm Valve
FYL is a large manufacturer for industry machine in China. Weir type diaphragm valve is one of top sell valves. Our company focus on improving quality, reducing production costs, and benefiting customers. We look forward to becoming your partner and serving you sincerely.
Send Inquiry
Product Description

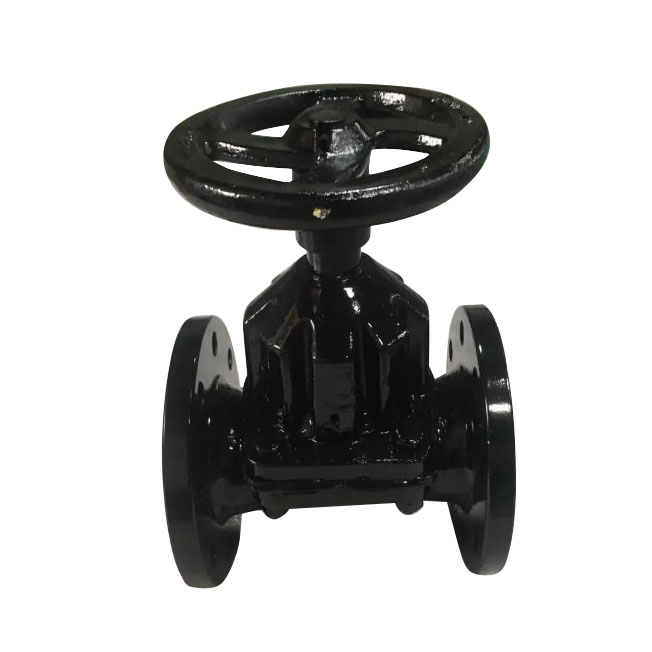

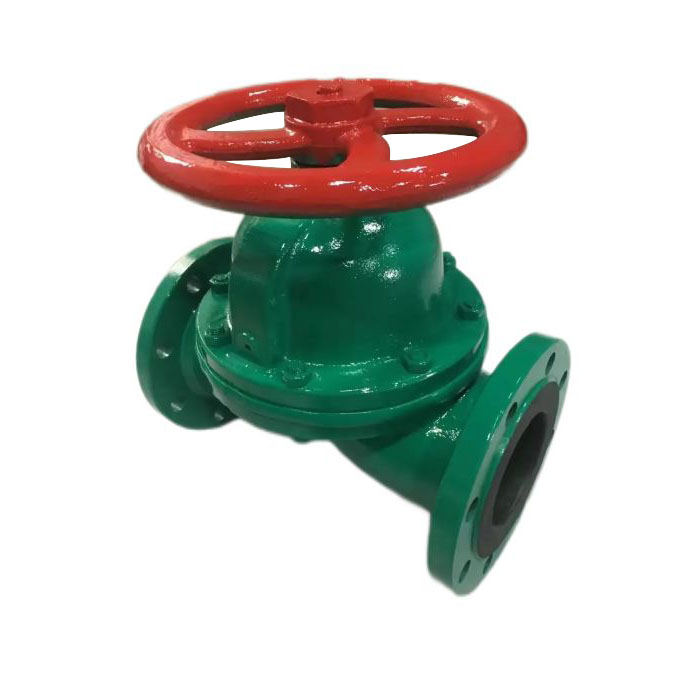

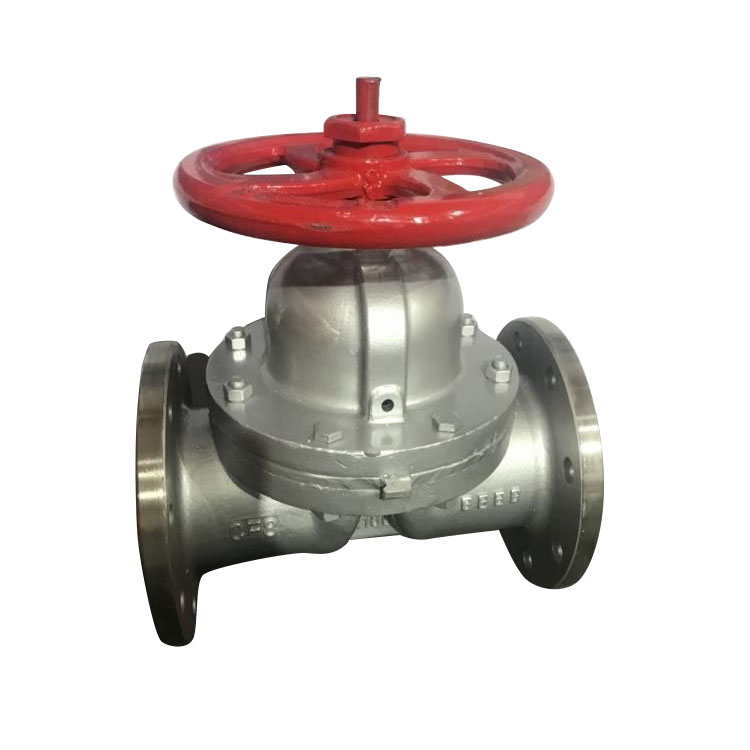

Weir Type Diaphragm Valve
FYL Weir Type Diaphragm Valve made in China regulating fluid flow, throttling, and controlling extremely small flow rates. Weir-type diaphragm valves use a two-piece compressor to make a tiny opening at the valve's center. Due to the potential for contamination and sludge buildup on the saddle, Weir-type diaphragm valves typically handle clean liquids and gasses.
Main Size(mm)
|
SIZE |
L |
D |
D1 |
D2 |
Z-Ød |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
|
DN |
IN |
PN10 |
PN16 |
PN10 |
PN16 |
PN10 |
PN16 |
PN16 |
PN25 |
|
|
15 |
1/2 |
125 |
95 |
95 |
65 |
65 |
45 |
45 |
4-14 |
4-14 |
|
20 |
3/4 |
135 |
105 |
105 |
75 |
75 |
55 |
55 |
4-14 |
4-14 |
|
25 |
1 |
145 |
115 |
115 |
85 |
85 |
65 |
65 |
4-14 |
4-14 |
|
32 |
1¼ |
160 |
140 |
140 |
100 |
100 |
75 |
75 |
4-18 |
4-18 |
|
40 |
1½ |
180 |
150 |
150 |
110 |
110 |
85 |
85 |
4-18 |
4-18 |
|
50 |
2 |
210 |
165 |
165 |
125 |
125 |
100 |
100 |
4-18 |
4-18 |
|
65 |
2½ |
250 |
185 |
185 |
145 |
145 |
120 |
120 |
4-18 |
4-18 |
|
80 |
3 |
300 |
200 |
200 |
160 |
160 |
135 |
135 |
8-18 |
8-18 |
|
100 |
4 |
350 |
220 |
220 |
180 |
180 |
155 |
155 |
8-18 |
8-18 |
|
125 |
5 |
400 |
250 |
250 |
210 |
210 |
185 |
185 |
8-18 |
8-18 |
|
150 |
6 |
460 |
285 |
285 |
240 |
240 |
210 |
210 |
8-23 |
8-23 |
|
200 |
8 |
570 |
340 |
340 |
295 |
295 |
265 |
265 |
8-23 |
12-23 |
|
250 |
10 |
680 |
395 |
405 |
350 |
355 |
320 |
320 |
12-23 |
12-26 |
