WCB or Stainless Steel Wedge Gate Valve

WCB or stainless steel wedge gate valve manufactured by FYL factory has a full range of sizes, which can be used in water conservancy or oil. We focus on product quality and will continue to provide you with professional services throughout the sales process, including providing solutions to installation problems.

Send Inquiry

Product Description

Among the many products of FYL factory, WCB or stainless steel wedge gate valve is an automatic valve. This valve achieves the goal of barrier sealing mainly by relying on the pressure of the medium to press the gate sealing surface to the other direction until it is tightly overlapped with the wide seat sealing surface.

In the rising stem wedge gate valve, the gate can be made into a whole, usually called a rigid gate. In order to improve the manufacturing capacity and compensate for the deviation in the processing process, this gate is called an elastic gate.

WCB or stainless steel wedge gate valve is also a widely used valve. It can be selected for oil and water vapor pipelines in petrochemicals, thermal power plants, etc. as an opening and closing device to connect or cut off the medium.

Product Features

1. The valve design is compact, rigid, with smooth internal flow channel and small flow resistance coefficient.

2. The sealing surface is made of stainless steel and hard alloy, with strong mechanical properties, high durability and long service life.

3. Flexible graphite packing is used, with reliable sealing and easy and flexible operation

4. WCB or stainless steel wedge gate valve has various driving modes, including manual, electric, pneumatic and gear transmission, which can be selected according to actual use needs.

5. It can be used in water, steam and oil pipelines in thermal power plants as an opening or closing device to connect or cut off the medium.

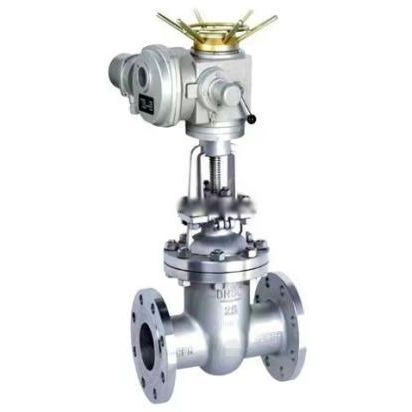

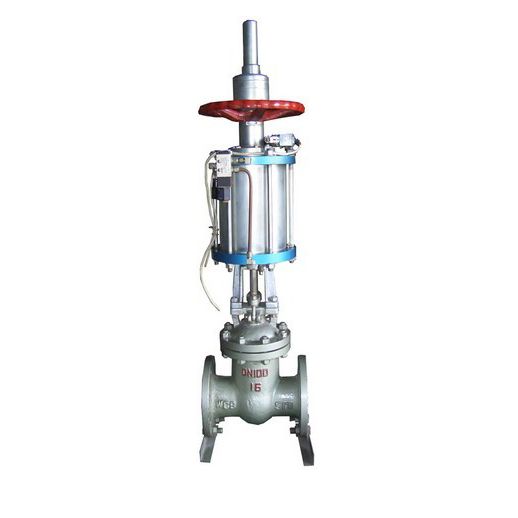

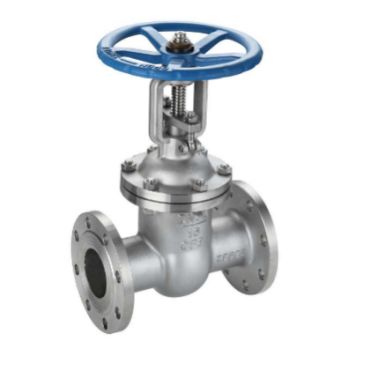

Handwheel Wedge gate valve	Electric Actuator Wedge Gate Valve	Pneumatic Actuator Wedge Gate Valve

Performance Specification

Nominal pressure PN(MPa)	(MPa)Test pressure
Nominal pressure PN(MPa)	Shell	(liquid)Seal	(air)Seal
1.6	2.4	1.8	0.6
2.5	3.8	2.8	0.6
4.0	6	4.4	0.6
6.4	9.6	7	0.6
10.0	15	11	0.6
16.0	24	18	0.6

Material for main parts

Part Name	GB			ASME
Body/Bonnet	WCB	ZGlCr5M0	304	A216WCB	A217WC6	A351 CFB
Wedge	WCB	ZGlCr5M0	304	A216WCB	A217WC6	A351 CFB
Stem	1Cr13	25Cr2M01VA	304	A182F6a	A217WC6	A351 CFB
Packing	Flexible graphite
Gacking	Flexible graphite
Temperature	-29～425℃	-29～550℃	-40～200℃	-29～425℃	-29～540℃	-46～425℃
Applicable medium	Water,stem、oil	Water,stem、oil	Nitric acid	Water,stem、oil	Water,stem、oil	Nitric acid

Main connection dimensions(mm)

SIZE	L	D
DN	L	PN16	PN25	PN16	PN25	PN16	PN25	PN16	PN25	PN16	PN25
15	130	95	95	65	65	45	45	4-14	4-14	14	16
20	150	105	105	75	75	55	55	4-14	4-14	14	16
25	160	115	115	85	85	65	65	4-14	4-14	14	16
30	180	140	140	100	100	78	78	4-19	4-19	16	18
35	200	150	150	110	110	85	85	4-19	4-19	16	18
50	250	165	165	125	125	100	100	4-19	4-19	16	20
65	265	185	185	145	145	120	120	4-19	4-19	18	22
80	280	200	200	160	160	135	135	8-19	8-19	20	22
100	300	220	220	180	180	155	160	8-19	8-19	20	24
125	325	250	270	210	220	185	188	8-19	8-28	22	28
150	350	285	300	240	250	210	218	8-23	8-28	24	30
200	400	340	360	295	310	265	278	12-23	12-28	26	34
250	450	405	425	355	370	320	332	12-28	12-31	30	36
300	500	460	485	410	430	375	390	12-28	16-31	30	40
350	550	520	555	470	490	435	448	16-28	16-34	34	44
400	600	580	620	525	550	485	505	16-31	16-37	36	48
450	650	640	670	585	600	545	555	20-31	20-37	40	50
500	700	715	730	650	660	608	610	20-34	20-37	44	52
600	800	840	845	770	770	718	718	20-37	20-41	48	56
700	900	910	960	840	875	788	815	24-37	24-44	50	60
800	1000	1025	1085	950	990	898	930	24-41	24-50	52	64
900	1100	1125	1185	1050	1090	998	1025	28-41	28-50	54	66
1000	1200	1255	1320	1170	1210	1110	1140	28-44	28-57	56	68
1200	1300	1485	1530	1390	1420	1325	1350	32-50	32-57	58	72

Main connection dimensions(mm)

PN(MPa)	DN(mm)	L	D	D1	D2	b	Z-φd
4.0	15	130	95	65	45	16	4-Ø14
	20	150	105	75	55	16	4-Ø14
	25	160	115	85	65	16	4-Ø14
	32	180	135	100	78	18	4-Ø19
	40	200	145	110	85	18	4-Ø19
	50	250	160	125	100	20	4-Ø19
	65	280	180	145	120	22	8-Ø19
	80	310	195	160	135	22	8-Ø19
	100	350	230	190	160	24	8-Ø23
	125	400	270	220	188	28	8-Ø28
	150	450	300	250	218	30	8-Ø28
	200	550	375	320	282	38	8-Ø31
	250	650	445	385	345	42	12-Ø34
	300	750	510	450	408	46	12-Ø34
	350	850	570	510	465	52	16-Ø34
	400	950	655	585	535	58	16-Ø41
	450	1050	680	610	560	60	20-Ø41
	500	1150	755	670	612	62	20-Ø48
	600	1350	890	795	730	62	20-Ø54
	700	1450	995	900	835	68	24-Ø54
	800	1650	1135	1030	960	76	24-Ø58
6.4	15	170	105	75	55	18	4-Ø14
	20	190	125	90	68	20	4-Ø19
	25	210	135	100	78	22	4-Ø19
	32	230	150	110	82	24	4-Ø23
	40	240	165	125	95	24	4-Ø23
	50	250	175	135	105	26	4-Ø23
	65	280	200	160	130	28	8-Ø23
	80	310	210	170	140	30	8-Ø23
	100	350	250	200	168	32	8-Ø25
	125	400	295	240	202	36	8-Ø31
	150	450	340	280	240	38	8-Ø34
	200	550	405	345	300	44	12-Ø34
	250	650	470	400	352	48	12-Ø41
	300	750	530	460	412	54	16-Ø41
	350	850	595	525	475	60	16-Ø41
	400	950	670	585	525	66	16-Ø48
	500	1150	800	705	640	70	20-Ø54
	600	1350	930	820	750	76	20-Ø58
